Product Specifications
| Specification | Product Details |
|---|---|
| Model Number | LY-DOT7-002 |
| Headlight Size | 7-inch round |
| Lighting Functions | High beam · low beam · white halo DRL · amber turn signal |
| LED Setup | 9 × 5W LEDs |
| Light Output | 3,600LM high beam · 2,400LM low beam |
| Color Temperature | 6500K–7000K |
| Input Voltage | DC 9–16V |
| Connection | H4 · two H4-to-H13 adapters included |
| Flicker Control | Built-in EMC and decoder |
| Housing | Die-cast aluminum with breathing vent |
| Lamp Cup Material | PMMA + ABS |
| Waterproof Rating | IP67 |
| Rated Service Life | 50,000+ hours |
| Listed Certifications | DOT · CE · RoHS |
| Warranty | 12 months |
Product Package
| Package | Dimensions | Gross Weight | Quantity |
|---|---|---|---|
| Single Set | 39 × 19.5 × 13.5 CM | 2.75 KG | 1 SET |
| Master Carton | 42 × 41 × 38 CM | 17 KG | 6 SET |

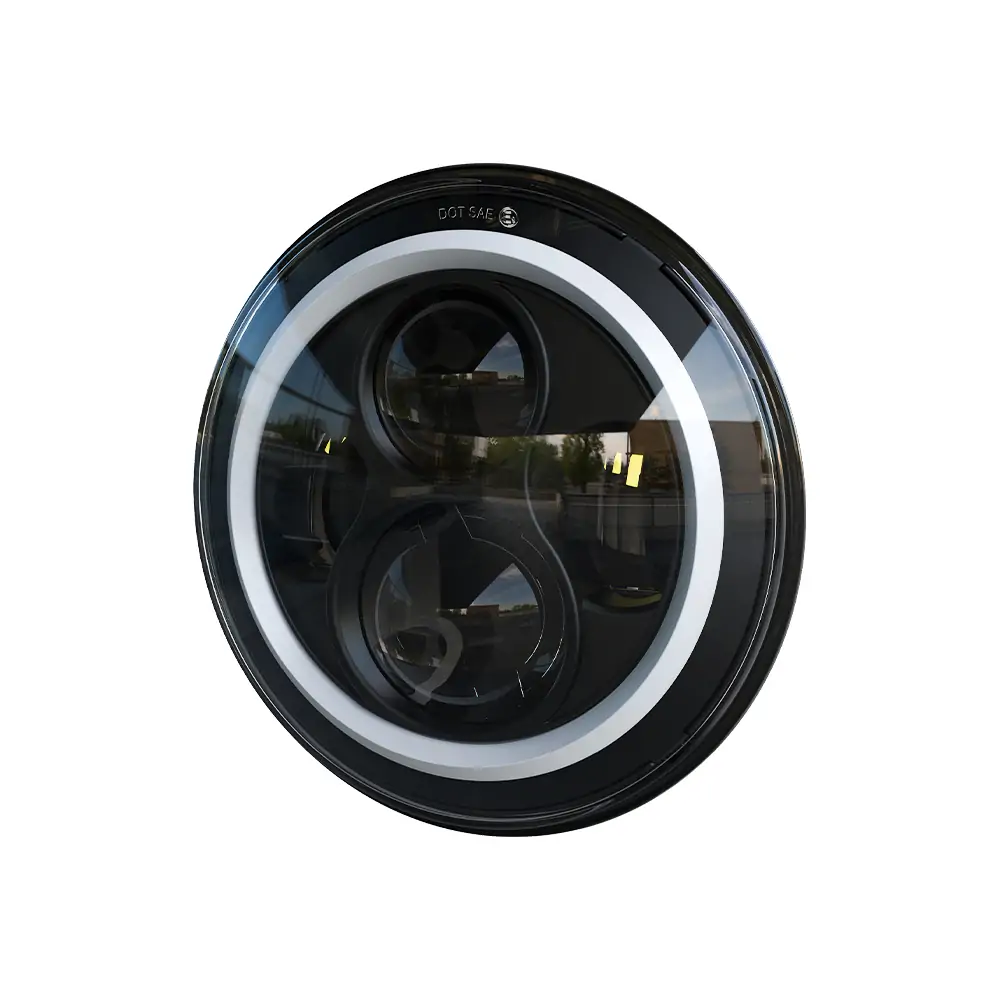

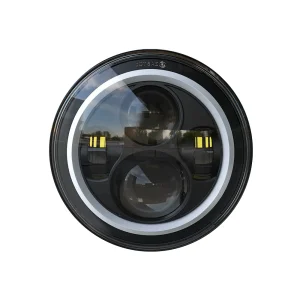

7 Inch LED Halo Headlight Details

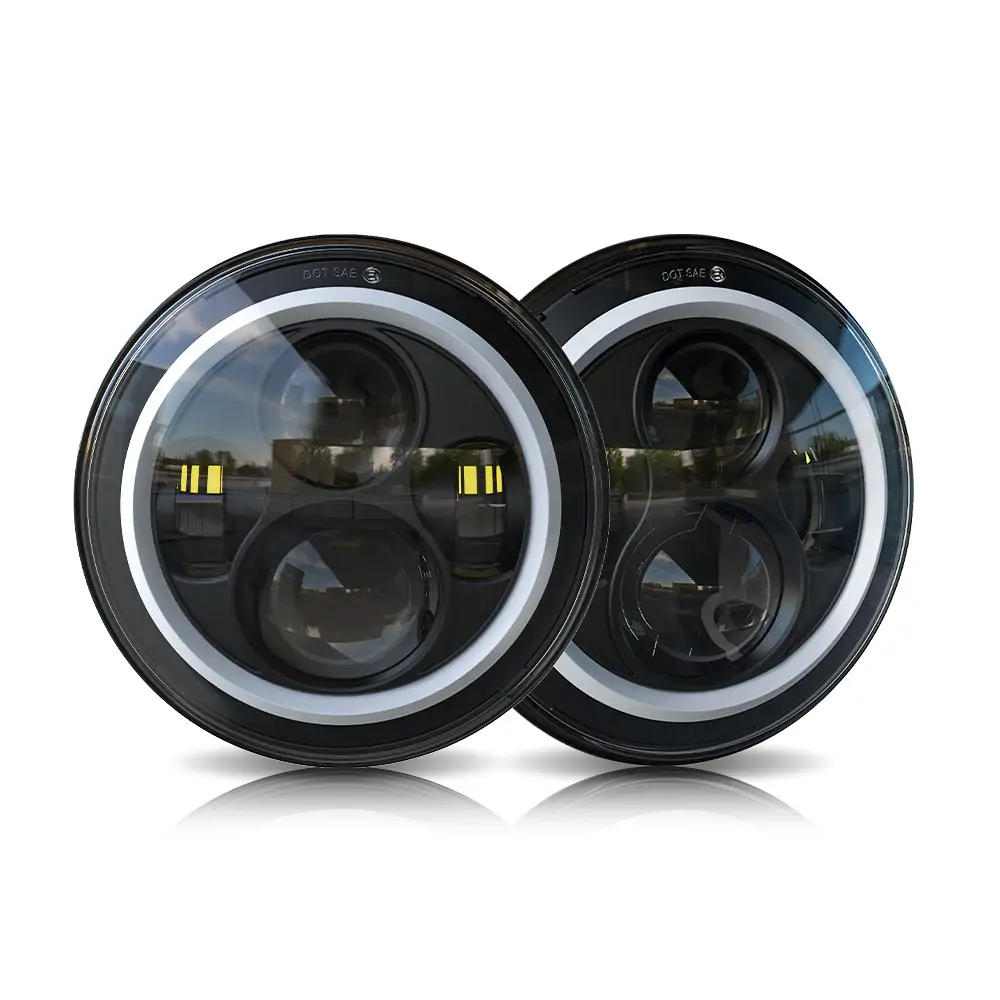

These 7-inch LED halo headlights for Jeep Wrangler combine the main road light, daytime halo and turn signal in one round housing. The white halo gives the Jeep a clear daytime light signature. When the turn signal is active, the halo changes to amber. The set includes two headlights and two H4-to-H13 adapters.

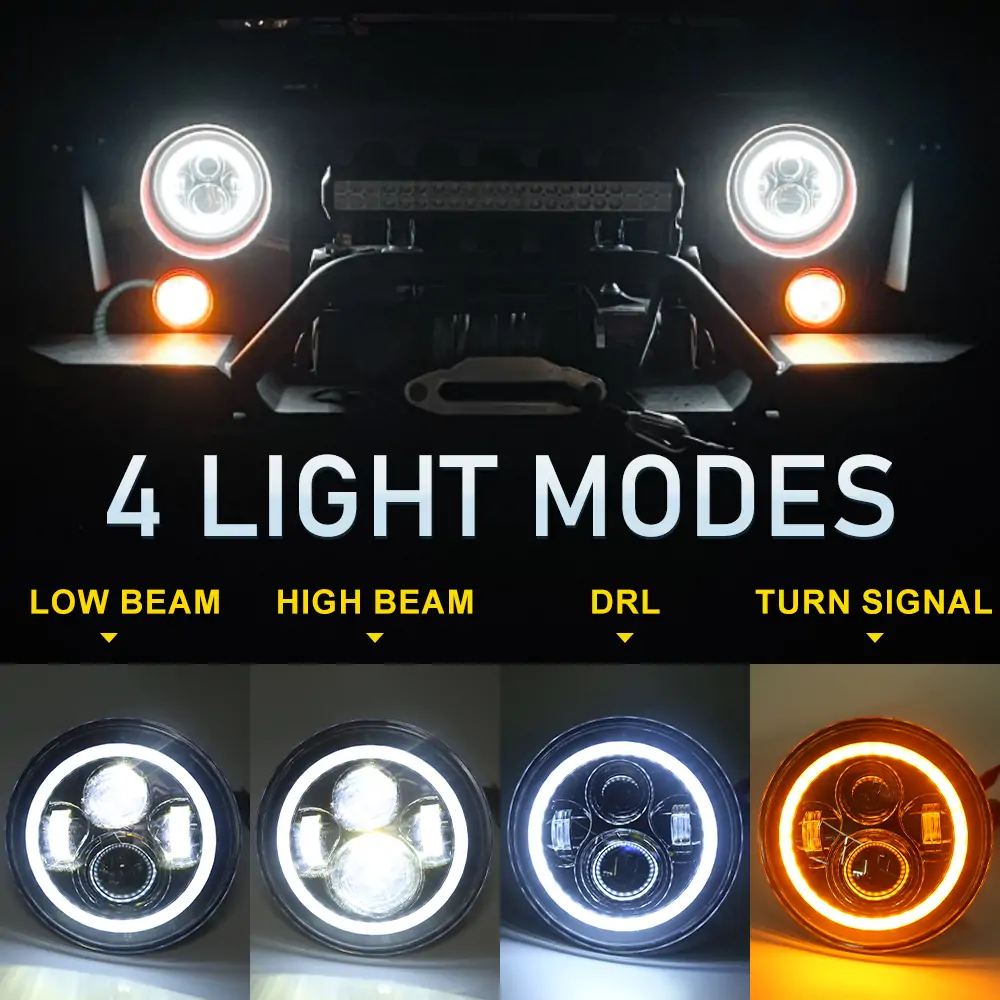

White Halo by Day, Amber at the Turn
The halo stays white as a daytime running light and switches to amber for the turn signal. This gives the front of an older Wrangler a cleaner, newer look without adding a separate light ring.
The amber signal is easier to notice at an intersection, during a lane change or when the Jeep is part of a busy trail group. Connect and test the DRL and turn-signal wires before reinstalling the grille.

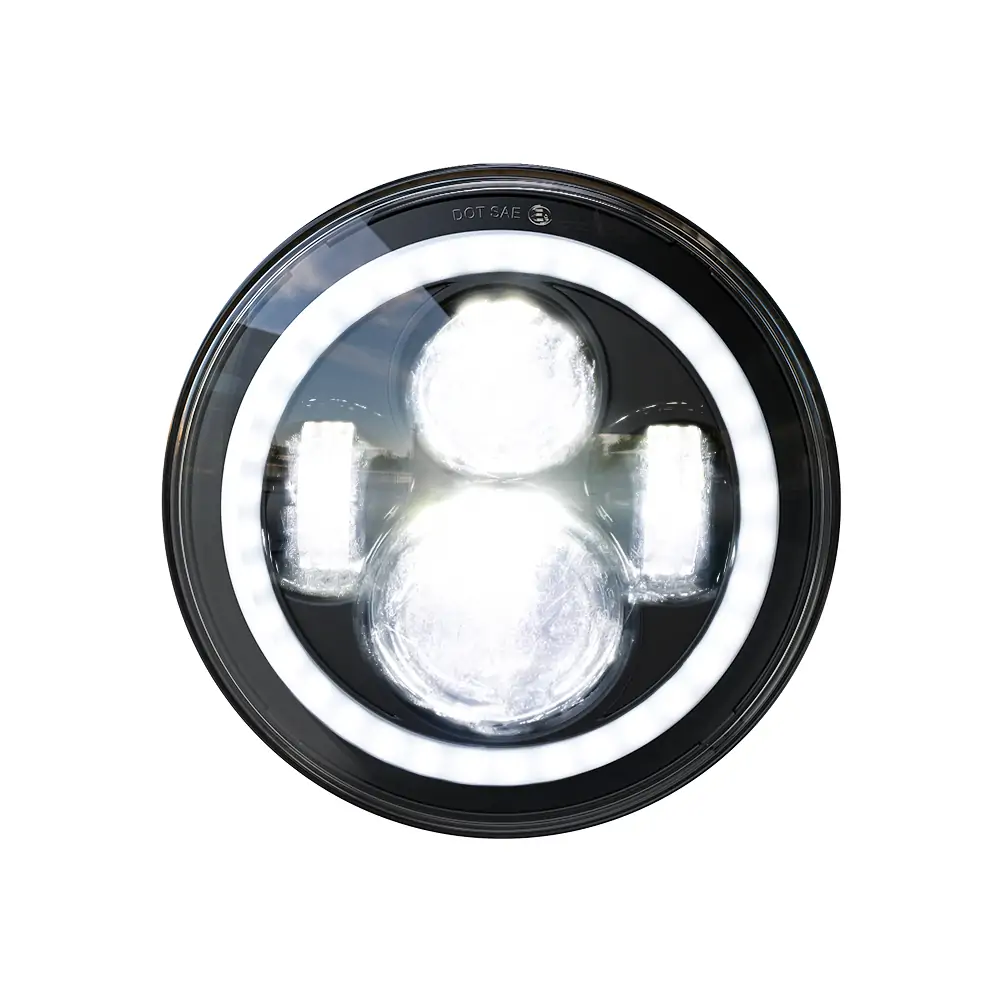

Clear White Light for Night Driving
The high beam is rated at 3,600 lumens, while the low beam is rated at 2,400 lumens. The 6500K–7000K color range gives the beam a cool white appearance.
Use low beam for normal roads and switch to high beam where traffic and local rules allow. Aim both headlights after installation, especially if the Jeep has a lift kit or changed ride height.
Built-In Flicker and Radio-Noise Control
LED upgrades can flicker or add noise to the vehicle radio when the electrical system does not match the new light. This model includes EMC control and a decoder to help reduce those problems.
Electrical systems can differ by vehicle and previous modifications. Test both beams, the radio, DRL and turn signals before finishing the installation.
Built for Heat, Dust and Wet Weather

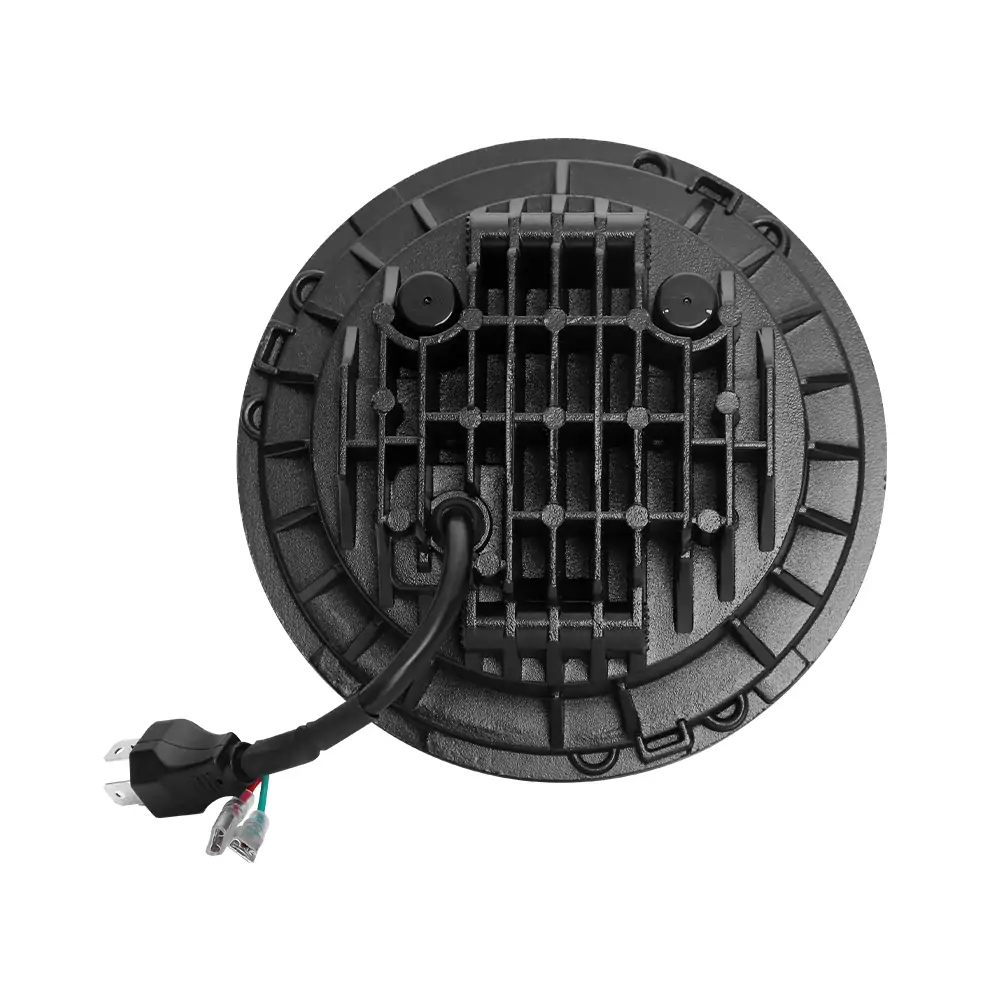

The die-cast aluminum housing moves heat away from the LEDs. An IP67 rating helps protect the internal parts from dust and temporary water exposure under the rating conditions.
A breathing vent helps release trapped moisture as the lamp heats and cools. Seal added wire connections and keep the vent open during installation.
Installation Parts for Different Jeeps
Two H4-to-H13 adapters are included for common Jeep connections. Confirm the retaining ring, headlight bucket, connector and rear clearance before ordering because older vehicles may have changed wiring or mounting parts.
Jeep Wrangler JL/JLU and Gladiator JT use a 9-inch factory headlight opening. Installing this 7-inch light requires the separate JL/JT headlight bracket kit.
Vehicle Fitment
| Vehicle | Model Years and Installation Notes |
|---|---|
| Jeep Wrangler JK / JKU | 2007–2018 · two-door and four-door models |
| Jeep Wrangler TJ | 1997–2006 |
| Jeep Wrangler LJ Unlimited | 2004–2006 |
| Jeep CJ-5 / CJ-7 / CJ-8 | CJ-5 1955–1983 · CJ-7 1976–1986 · CJ-8 Scrambler 1981–1985 |
| Jeep Wrangler JL / JLU | 2018–2026 · separate 7-inch conversion bracket kit required |
| Jeep Gladiator JT | 2020–2026 · separate 7-inch conversion bracket kit required |
| Hummer | AM General Hummer 1992–2001 · Hummer H1 and H2 2003–2009 |
| Land Rover Defender | Defender 90, 110 and 130 |
| Chevrolet | Blazer 1966–1991 · Suburban 1973–1991 |
| Other Listed Applications | Mazda Miata and vehicles with a compatible 7-inch round headlight housing · verify model, mounting and wiring before ordering |
A 7-inch diameter alone does not confirm fitment. Check the headlight bucket, retaining ring, connector, rear clearance, 9–16V input and DRL/turn-signal wiring. Older vehicles may have non-original parts or changed wiring.
Frequently Asked Questions
Will these 7-inch halo headlights fit a Jeep Wrangler JK?
Do these headlights fit Jeep TJ, LJ and CJ models?
What do I need to install them on a Jeep JL or Gladiator JT?
What does the halo ring do?
Will the built-in decoder stop every flicker problem?
What comes in one headlight set?
Which certifications are listed for model LY-DOT7-002?
What are the package size and weight?
